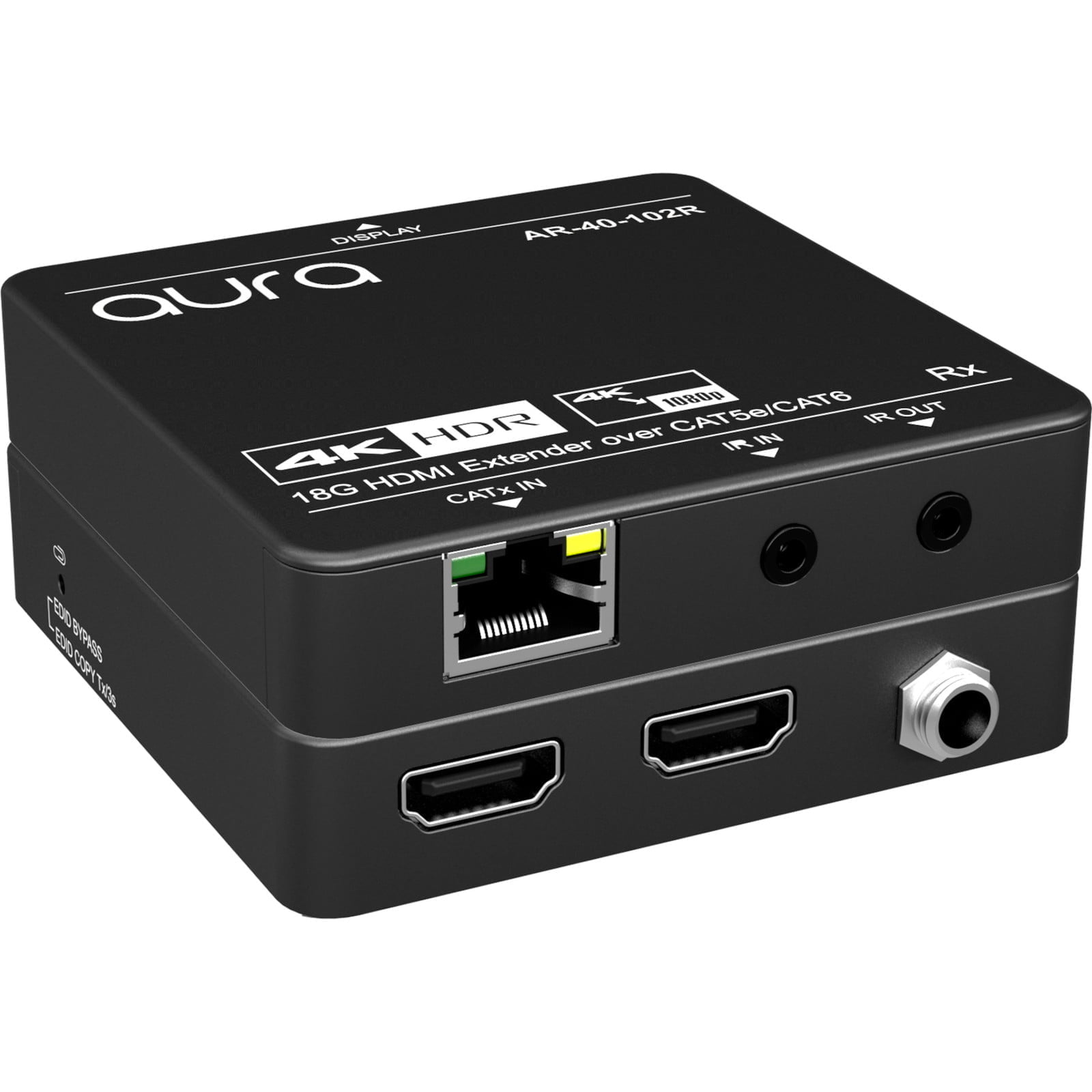

This product is a high performance point-to-point extender set for 4K HDMI 18Gbps with IR signal support and local loop out. This kit supports 4K/UHD video at 60Hz with 4:4:4 Chroma sampling, as well as HDMI data rates up to 18Gbps, HDCP 2.2 compliant. It supports an HDMI transmission distance of up to 70 meters for 4K at 60Hz 4:4:4 or 1080p, over single CAT5e/6 cable. It also supports video resolution down-scaling with the 4K input be automatically downscale to 1080p output for compatibility with 1080p display.

  • HDMI V2.0, 4K at 60 Hz 4:4:4, HDCP 2.2
  • Extension up to 4K to 70m, 1080p to 80m
  • HDMI local loop out
  • PoC, Tx Powers Rx, 12V DC
  • Bi-directional IR pass-through
  • Features local loop out
