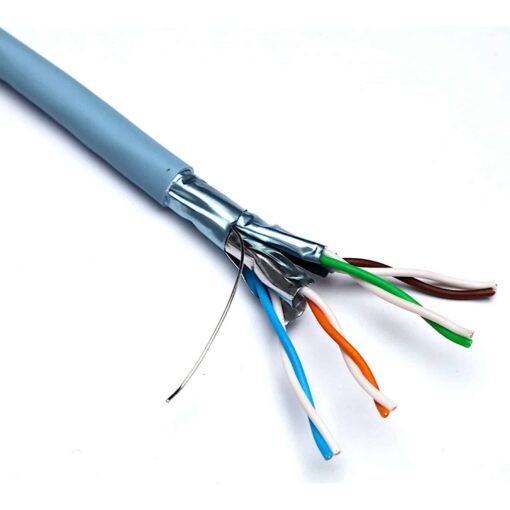

Excel solid Cat6a cable screened F/FTP LSOH S-Foil CPR Euroclass B2ca designed and manufactured to meet and exceed the ISO, CENELEC and TIA standards and supplied on 500m Reel. Excel Cat 6A fully screened (F/FTP) Cable takes the performance capabilities of copper infrastructure to new levels. This delivers Class EA/ Augmented Category 6 link performance over distances of up 90 metres which supports the applications including 10GBASE‐T, 10 Gigabit Ethernet.

Each cable consists of two sets of two pairs which are wrapped together in an “”S”” configuration with high quality, strong, aluminium/polyester foil tape providing screening for each pair. The “”S”” Foil configuration ensures separation of the pairs that ensures the performance.

The individual pairs are set to different lay lengths to ensure optimum performance. These are then wrapped in another overall foil.

  • Cat6a Solid Copper Cable
  • F/FTP Overall Foil Screen
  • S Foil Screened Pairs
  • Outer sheath colour Ice Blue
  • Reaction-to-fire class according to EN 13501-6: B2ca
  • Smoke development class according to EN 13501-6: s1a
