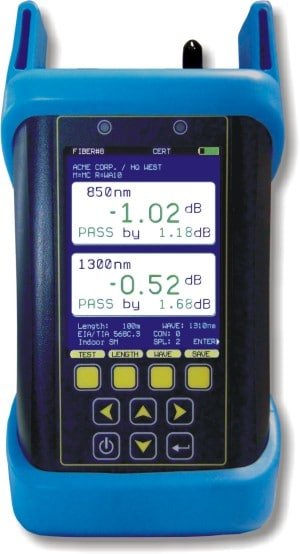

Fiber OWL 7 Power Meter

Fiber OWL 7 is a high accuracy, high resolution, microprocessor controlled optical power meter. It has an attractive handheld case, a large color LCD, and 10-key keypad for easy data entry.

The universal detector port comes with two adapters: 2.5mm for ST, SC, and FC; and 1.25mm for LC, MU, and other SFF connectors.  The length tester port is SC.

The Fiber OWL 7 is powered by a lithium polymer re-chargeable battery, and will operate for up to 50 hours of continuous operation, and includes a built-in auto shutdown feature. A length testing port is included for end-to-end fiber optic link length measurements.

The Fiber OWL 7 includes a built-in Link Wizard that configures the meter for standards-based fiber link certification.  Each fiber run is stored with link name, date of test, cabling standard, fiber type, fiber length, reference value (for up to two wavelengths), reference cable type, connections, splices, and temperature.

In addition the meter will store up to 10000 measured data points with labels. The stored information can be selectively viewed, edited (measured again), printed, or deleted. All stored is downloaded through the USB port to our free OWLView certification software.

Data Sheet Available HERE

This is a special order product and is not available for next day delivery, lead time is 10-14 working days.
